3/16" Orange Acrylic Sheet
Color 2564 · 3/16" thick
3/16" Orange translucent acrylic, cut to your exact size from 11″ to 48″ per side. Choose a standard size or enter custom dimensions, add flame- or diamond-polished edges, and see the price instantly.
$5 for the first cut, $3 each additional, totaled across your line.
Need notches, holes, or curved cuts? Request a quote →
3/16" orange in practice
Translucent stock diffuses rather than transmits, and thickness controls how much: at 3/16" it softens a light source considerably, hiding lamps and LEDs behind an even glow at the cost of brightness.
Here the sheet starts to feel stiff in the hand and spans further without visible bow, while staying easy to cut and drill on ordinary tools.
In a laser: CO2 cuts it without trouble. A diode usually will too — pigment is what absorbs the beam — but translucent shades vary, so test an offcut before committing a sheet.
3/16" orange (colour 2564) runs $9.28 per square foot at this gauge and weighs about 1.17 lb per square foot, so a 24″ × 48″ piece comes to roughly 9.4 lb — worth knowing before you size a panel someone has to lift or ship.
Why 3/16" orange acrylic?
A middle step between 1/8″ and 1/4″. The extra thickness adds noticeably more rigidity while keeping weight down, so it holds its shape better across medium panels — useful for signage, partitions, and light-duty panels that need a bit more backbone than 1/8″.
About Orange acrylic

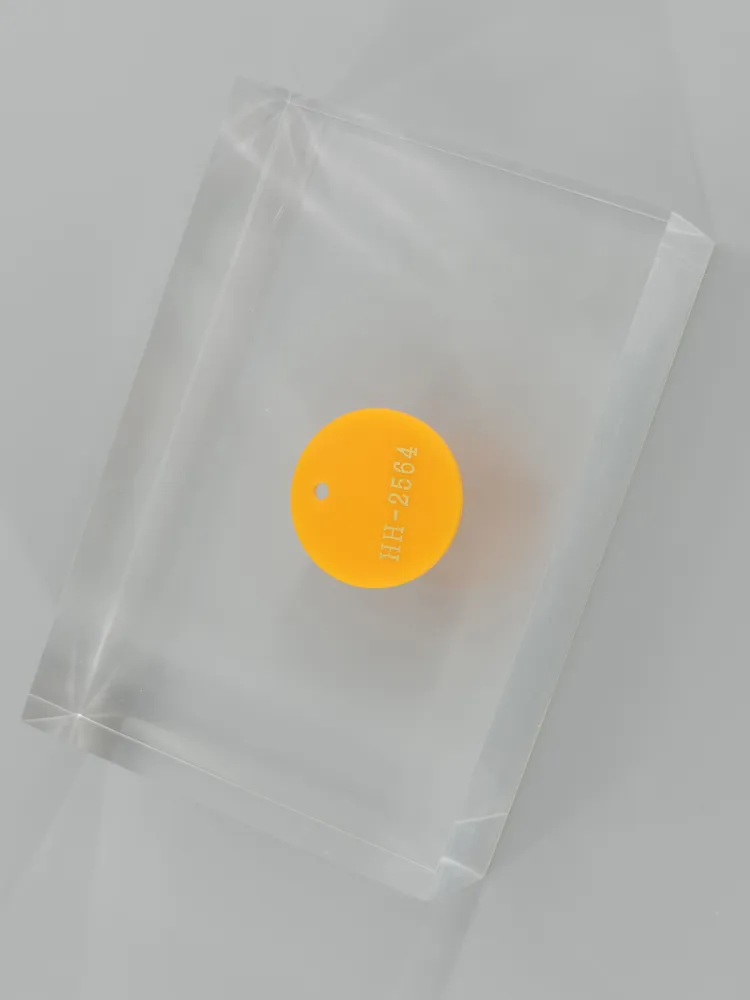

Orange 2564 is a translucent orange in our range, close to 2119 but its own tone. It diffuses backlight into a warm glow and delivers punchy color unlit — a fit for signage, displays, and craft work. Reference the 2564 code when color-matching.
Made to order. Not every color and thickness is stocked at all times — if yours is temporarily out, we make or source it and ship as soon as it's back in stock. On a deadline? Email us before you order and we'll confirm your expected ship date.
